Wanting to get the finishing details completed on the Bose speakers, I made the frames for the grills. I had speaker grill pegs and grill cloth for a long time in my collection of things for speakers.
Just a few photos of how I made them… frame is out of pine wood, with glued MDF for the sides.
Frame sizing… fit check
Speaker grill pegs … 4 per grill
Both grills can be put on either speaker
Finish with the speaker cloth…
After selling my big sound system (I had a Bose 802 pair with the 302 sub cabinet) I decided since I had 16 of the Bose replacement speakers (1.6 Ohm), some time and some nice MDF 3/4 inch board, I would set out to build a pair of Bose 402 knock offs. Now the originals are plastic cased or wood case, I figure I could do a pretty good job with MDF. It was a challenging build but I am glad I did the pair at the same time. Usually I would build one cabinet and see how it sounds before cutting up more wood to make the next cabinet. The complexity was in the 30 degree 70 degree wedge for each driver. also tring to figure out port spacing, my ports on either end were bigger and allowed more air movement than I wanted… I ended up poly filling the entire internal cabinet.
22uF 100V capacitor was the low end filter and a 3amp fuse was also put in to protect the speaker like the original. 1.6 Ohms per driver gave an over all speaker impedance of approximately 6.4 Ohms. speaker testing was done on a Bose amplifier receiver with the setting for the EQ at the 901 Level (Yes i have a pair of BOSE 901s too, with the pedestals), and the speakers did the sound right, flat with a hint of bass, but will be set up in the garage with a proper Bose EQ and an amplifier what will allow the 100 watts recommended amplification to see if they will shine.
Now since the frequency range is 90Hz to 20K Hz it is paramount to have a sub woffer to back up the low end… I plan on making a 12 inch woffer in a small cabinet what will allow bi-amplification and a good full range sound if I did use these in a small gig, for a back yard party or at a bar to do some DJ’ing.
Here are a few photos of the build:
These angles were cut three times, and measured 8 or nine times, I settled on a 40, 50 90 degree wedge.
Gluing up the chamber
Adding each wedge and checking for speaker interference.
Gluing the plates for each wedge
More glue, more silicon sealant, more clamps!
Sound check
I am painting them white only because my house is mostly white inside, but I have a 5 gallon bucket of paint, and I am bound and determined to use it up… (same paint on the corner cabinet shelf I made a year ago) and so the speakers are now white as well.
Spec book from Bose.
The pair painted, and ready for a bigger sound check…
I will make a plastic frame that will allow me to place a cloth grill over the speakers and cover the bass ports on each end.
The speaker stands i have are to large for in the house, but I will be sure to put a few screw mounts on the bottom of each box in case i want to put the speaker stand mounts on them…. so in the next few weeks be looking for the woofer cabinet and the speaker grills, i will try and post a few more pictures and let you know how the sound check goes!
Happy speaker building!
Hi Heather this was the painting I did for myself about 5 years ago i started it, and never finished it until about a week ago, my mom has one that was painted about 6 years ago and i finished it in a very fast hour at one of the wine and paint places, the lady was mad because everyone else (my mother in law and my Wife ) were told and taught how to paint a winter scene with birch trees and a red robin… I just did my own thing..not my own design though, I got my inspiration for another artist… but I still think it turned out great. (Size 16 inch by 22 inch)
Starting with an idea to recreate the RCA dog that was from the Advertising done back in the 20s and 30s for RCA, having the white dog in front of the big horn speaker driver, I set out on a new project.
Using some chicken wire and some Papier Mâché (I like how the French say this) meaning ‘chewed paper’ I fashioned a small puppy about a foot in height and about a half bag of the paper clay CelluClay…
When i get him sanded down and painted I might post another few photos, but for now this was just a quick and fun little project! I look forward to setting this little guy in front of my custom horn driver… and enjoy some old style music recreation.
Since I am going to have my seats for my restoration project redone, I decided I needed to work on some of the details prior to getting it back and putting it all back together.

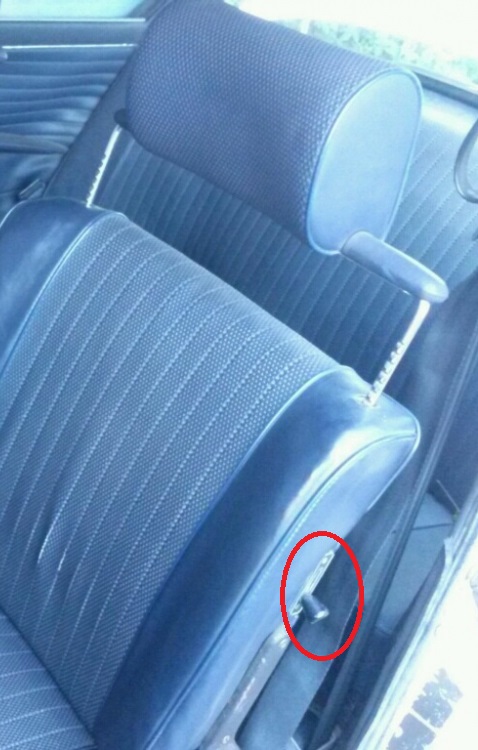

One item that is hard to find is the Seat lever plastic cover… near the Seat Backrest Unlocking Handle…
Here is a picture:
There is a plastic cover that turns brittle and breaks off, never to be found and too expensive to replace… so i decided to take a crack at 3D printing one…
You can dowlload the .STL file here:https://www.myminifactory.com/object/3d-print-cover-1969-1974-bmw-seat-backrest-unlocking-handle-116207
And I painted it after printing to get the silver and black look:
You can see how the orginal ones are destroyed…my print was a bit thicker but still fits and allows the unlocking feature to still operate.
Happy restoration!
